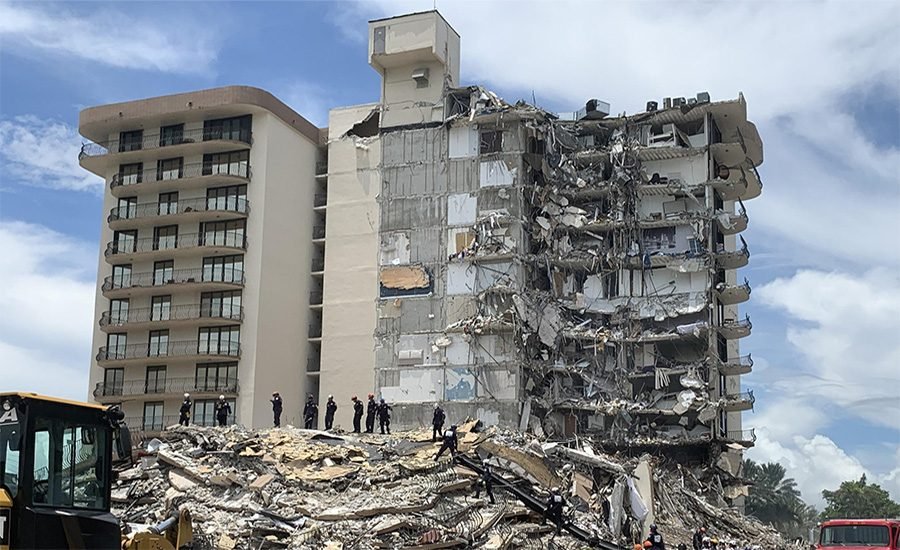

Federal researchers said on September 9 that the catastrophic collapse of the Champlain towers in the south in Surfside, Fla., Probably began on the pool cover.
The National Institute of Standards and Technology reported that the results of the structural tests and highly fidelity computer simulations show a Llosa Column connection on the roof was the probable origin point of June 24, 2021, a failure that killed 98 people.
Related
The probe says the cover of the surfside pool failed several minutes before building
“The results of these efforts indicate that the failure was more likely to be started in a connection of pool slabs columns,” said Glenn Bell, a co-liter researcher at NIST’s National Construction Security Team. He added that the simulation tests and laboratory tests of slabs to columns are constantly aligned with video tests, which captured the pool roof that began to fall before the tower itself collapsed.
Nist said that the pool roof and street parking roof began to fail at least seven minutes before the residential tower drops. Researchers cited large -scale tests of concrete ensembles, digital modeling calibrated against security images and revision of construction records.
The evidence pointed to the concentrated local deterioration near the eastern section of the pool roof, where a sliding glass door was evicted from its frame, horizontal cracks spread over the walls of the plant, and a steel door was dropped from the alignment and locked.
The water infiltration on the garage ceiling was observed the day before the collapse, with the flows that increase abruptly in the last hours before the failure.
Judith Mitrani-Reiser, a research leader, said that the team’s continued technical work is focused on strengthening steel corrosion, concrete contraction and joints built inappropriately inside the pool cover slab. “This tragic event has revealed defects in our systems and the quality is in the heart,” he said.
Mitrani-Reiser also said that some roof reinforcement bars were lower than specified design drawings, reducing their ability to transfer the shear forces to the columns. In addition, the heavy landscape planters added during the construction introduced loads, which further emphasized the connections of columns of slabs.
Related
Construction may play a role in high subsidence in southern Florida
The investigation has also confirmed that the waterproofing membranes of the pool roof had been failed, allowing chlorides from the intrusion of salt water to run the reinforcement.
“The signs of anguish we documented were concentrated in a relatively small area of the roof of the pool and street parking at street level,” said Mitrani-Reiser, emphasizing that the starting point was localized and predictable in the later vision.
Nist plans to complete his technical analysis by the end of 2025 and issue a summary report project and six technical reports detailed in the spring of 2026.
Reached a tragedy
Following the collapse, Florida legislators reviewed the Condominium Law to strengthen the inspection and reservation of the requirements.
By virtue of the legal reviews of Chapter 718 of the Florida Statutes, the associations for buildings three stories or superiors now have to complete a reserve study of structural integrity every ten years.
From the budgets adopted after December 31, 2024, these studies dictate compulsory funding levels for structural elements such as loading walls, primary structural members, roofs, waterproofing, electricity and plumbing systems. Unit owners can no longer give up or subfonish these reserves.
Existing associations must complete their first structural integrity reserve study on December 31, 2025.
The by -laws also require milestones for higher buildings in Section 553.899, with the information requirements related to the recession cycles and forcing developers to provide billing inspection reports when changes in control to residents.
The Florida legislature promulgated the measures by 2022 and has since been perfected to clarify thresholds and financing obligations, with the aim of capturing deterioration before it becomes catastrophic.
With the release of his preliminary findings, Nist said he will continue to perfect his modes of structural failure and environmental effects, with final conclusions and security recommendations scheduled next year.
