Start and work the trailer begins with the right tools and a complete kit. Do not hurry the unproached wiring -you have the basic elements in hand will save you frustration and time.
To properly connect the tow lights in the car, you will need:
These tools help you remove cables, secure connections and test tension for safe and effective wiring.
You want to install a trailer light kit that matches your type of trailer. A standard 4 -pine trailer wiring kit includes queue lamps, a wiring harness, assembly hardware and connectors. For more advanced configurations (brakes, reverse lights, etc.), a 7 -pine connector may be required. Choose a waterproof kit if the trailer is used for navigation or in rainy areas.
Before starting to connect cables, it is important to understand the operation of the trailer lighting systems and what each component does. This is the key to avoiding mistakes and getting it all well for the first time.
These colors are standard in most trailer light diagrams, but always check with your specific kit.
The trailer wiring involves working with your car’s electrical system so you don’t have shortcuts at safety. A mistake can fry a fuse or worse.
Before touching a wire, disconnect the negative terminal of the car battery. This helps prevent accidental underpants or electrical damage while working.
If you need to put you under the trailer to install lights or route cables, make sure it is stable. Use a Jack and Jack support, and kick to avoid rolling. Security is not optional: it is the first step.
Today many vehicles include a factory trailer package, which includes a trailer wiring harness near the back -bumper. If you do not, you must connect the tail light cables by means of a T -connector method or splicing.
Using a multimeter or test light, activate the rotation signals, the brake lights and the tail lights to determine which wire does what. Tag them if needed. In this way, it guarantees you to connect the trailer wiring to the correct signals.
Once the tools are ready and the identified cables, it is time to start connecting. This is the heart of the wiring trailer lights in your car, and where the accuracy matters most.
If your kit uses fast connection clips, you may not have to disseminate. However, splicing offers more reliability. Move -approximately ½ inches of insulation of each wire, twist the cables together and cover with a connector or welding welding and shrink.
This step is often overlooked. Without a solid ground, the trailer lights may blink, dim or not to work at all. Always connect the white floor thread to a bare metal part of both the car frame and the trailer frame.

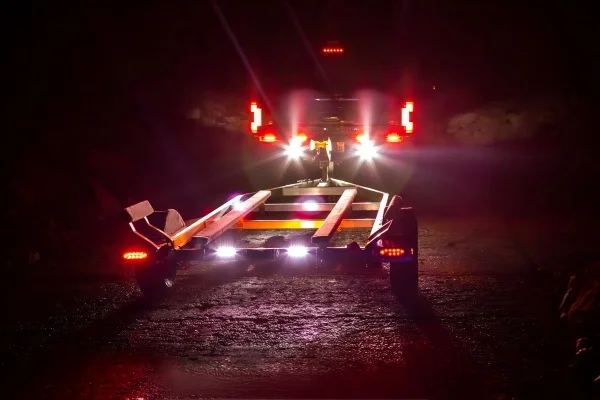

The tail lights should be assembled symmetrically at each rear corner of the trailer. Turn signals and brake lights must be visible from behind and not obstructed by equipment or load. Ensure -You meet the height and width of your country.
Use zipper ties, cable tongs or conduit to direct wiring along the trailer frame. Avoid areas close to suspension components or moving parts. Keep the wire to avoid drag, but allow enough to accommodate blows and vaults.
You mounted everything and connected the cables, but before going out on the road, test all the functions. It is better to find problems now than for a night.
Set your multimeter to the DC voltage and check the power of each trailer yarn terminal. You should get a consistent reading when the corresponding signal is activated. No reading? Check the floor first.
With the battery of the reconnected car, turn on the tail lights, the brake lights and the flags. Have someone behind the trailer and confirm that all lights work as expected. If not, review the connections using the wiring diagram as a guide.
Even experienced diyers make mistakes. Recognizing these common problems can save you hours of frustration.
Loose, corroded or missing earth cables are the number one cause of the trailer light failure. Always check dirt points for safe contact.
The connection of the wrong cables can cause the signals to activate incorrectly, like the light of the brake by blinking when you rotate. Always follow a wiring color code or double check with a diagram.
The cables must be waterproof and insured. Exposed cables can be reduced to rain, while loose cables can be taken or trapped during the trailer.
Like anything mechanical, trailer lamps need routine controls to keep reliable and road prepared.
The wiring lights on a car are not just a matter of connecting a connector, but also a vital security task that guarantees that you are prepared by road and legal. From understanding how your system works to grounding properly and sealing the connections, each step is important. Following this guide, you can install or update your trusted trailer light kit and avoid the common wiring headaches on the road.
