Powered by a Yanmar 24.3hp Tier 4 3-cylinder diesel engine water-cooled for optimal performance
Yanmar is a global manufacturer of quality engines, made in Japan, offering you confidence in reliability and after-sales support.
Engine certified to meet strict Tier 4 engine and noise emission standards
A generous engine displacement of 1116cc, resulting in over 60Nm of torque for serious work
Cruise control maintains power and speed when cutting wide open areas
TRANSMISSION LINE
TYM TS25 tractor cruise control lever
The tractor’s weight of 755kg is a reflection of the heavy-duty transmission, driveline and axles. The weight of the tractor is, in part, a result of the heavy front axle, which is important for a tractor equipped with a front loader, as substantial loads are applied during loader operation.
High-efficiency hydrostatic transmission provides infinitely variable forward and reverse drive speed
Hydrostatic propulsion controlled by independent forward and reverse pedals for simple and easy operation
Hydrostatic power steering makes steering light, which is especially important with front loaders
Easy cruise control lever settings for tireless driving when mowing large areas
TYM T265 automatic throttle
The Auto Throttle feature links the HST pedals to the engine throttle to synchronize tractor speed and engine RPM. This simplifies operation, helps increase productivity and reduces fuel consumption.
TYM TS25 tractor
Front and rear industrial tires are forgiving on grassy areas but still maintain traction when needed and are ideal for front loader applications
20×8-10 front tires with 5 axle studs for added strength
27 x 12.50 rear tires with 6-axle studs for added strength
TYM TS25 front axle
The heavy-duty front axle performs under tough working conditions and handles loads with ease
A long wheelbase and wide stance increase stability in all conditions
TYM TS25 4wdDiffLock
4WD and differential lock offer better traction, control and performance
4WD mode is controlled by a lever on the operator’s left side
Quick response and durable wet disc brake
Foot brake with ergonomic design located on the left of the floor
PTO, HYDRAULIC AND LINKAGE
PTO function TYM TS25
Easy mid/rear PTO selection that can be operated independently or simultaneously
Fully independent rear PTO (540 rpm) and middle PTO (2000 rpm) activated by electro-hydraulic clutch
The PTO coupling is easily operated by the button control on the dashboard
The rear hitch is category 1 with a high lifting capacity of 600kg (at ball ends)
Flat tow bar for towing trailers
TYM TS25 tractor PTO
The PTO unit is a simple and straightforward design for great efficiency and power
The PTO clutch is an independent oil-immersed clutch pack for long life and simple button operation
TYM TS25 Tractor Auxiliary hydraulic valve
3-point hydraulic lowering speed control
CONTROLS
TYM TS25 tractor controls
The ergonomic design has the controls within easy reach of the operator
The modern instrument panel is easy to read and displays all essential information
TYM TS25 linkage lever
Right side controls:
3-point linkage lever
TYM TS25 RHS Controls
Left side controls
4WD
PTO
High-low transmission range lever
DISPOSITION
Access to the TYM TS25 tractor
Neat and tidy access offers generous space to get in and out of the tractor
Folding braces for TYM TS25 tractor
2-post folding ROPS for working under trees or areas with little clearance
TYM TS25 tractor hood open
Easy opening hood allows access for service checks and maintenance
TYM TS25 tractor air filter
Large can type air filter for Australian dust conditions
OPTIONS

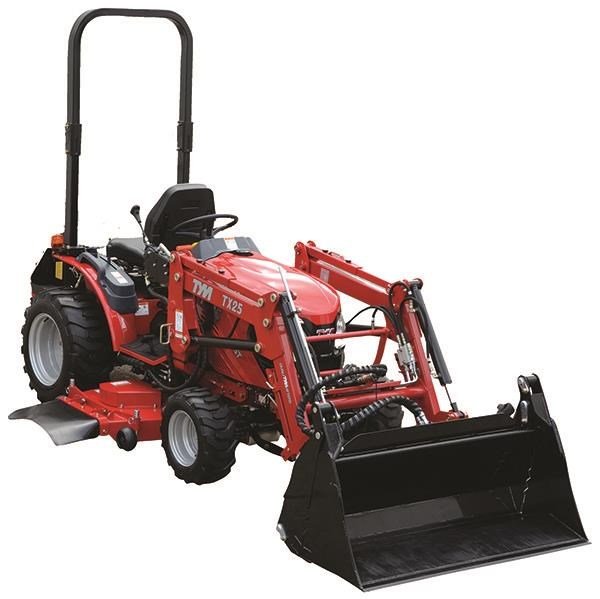

FRONT LOADER
Tractor Quick Detach and Quick Detach Hub
Fast cycle times (up/down)
The integrated loader parking is a guarantee of safety during service
The counterweight box helps with stability when lifting heavy loads
Full width adjustable impact guard for tractor hood protection
Heavy-duty 4-in-1 bucket (1240mm wide)
A unique joystick provides ergonomic operation of the front loader
Full details and specifications on the optional front loader
Backhoe BT25
BACKHOE (BY60)
Easy to remove
Swivel operator seat
TS25 medium mount mower
Mid Mount Mower (MM60R)
Side discharge with rubber guide
Adjustable steering wheels
Clean and powerful cut
Cutting height of 25-100 mm
OTHER OPTIONS
Auxiliary hydraulic valve TYM TS25
Hydraulic remote outputs for TYM BY60 backhoe or log cutter operation
